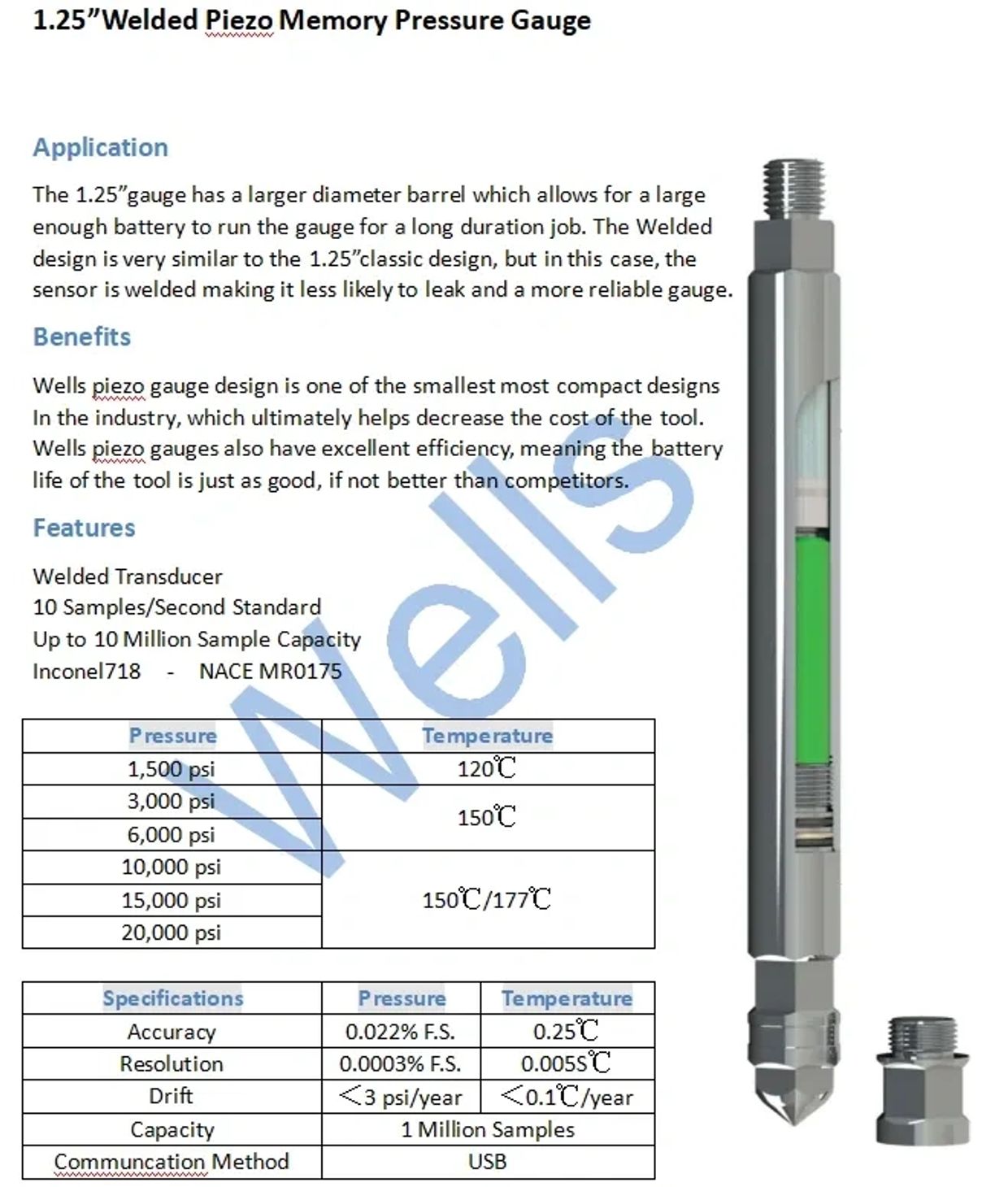

Application

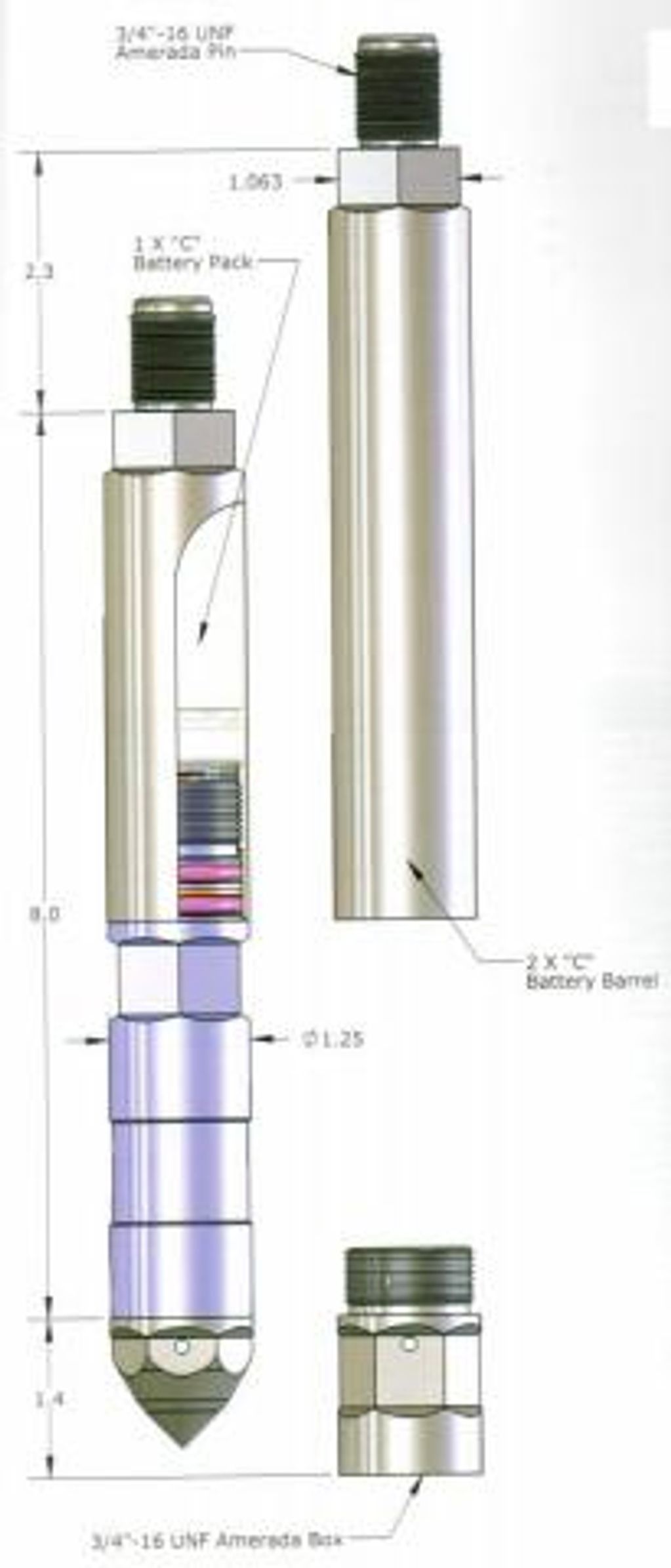

The 1.25”gauge has a larger diameter barrel which allows for a large

enough battery to run the gauge for a long duration job. The Welded

design is very similar to the 1.25”classic design, but in this case, the

sensor is welded making it less likely to leak and a more reliable gauge.

Benefits

Wells piezo gauge design is one of the smallest most compact designs

In the industry, which ultimately helps decrease the cost of the tool.

Wells piezo gauges also have excellent efficiency, meaning the battery

life of the tool is just as good, if not better than competitors.

Features

Welded Transducer

10 Samples/Second Standard

Up to 10 Million Sample Capacity

Inconel718  -  NACE MR0175

Pressure        Temperature

1,500 psi                     120℃

3,000 psi                     150℃

6,000 psi                     150℃

10,000 psi          150℃/177℃

15,000 psi          150℃/177℃

20,000 psi          150℃/177℃

Specifications

Pressure

Accuracy; 0.022% F.S.

Resolution; 0.0003% F.S.

Drift; ＜3 psi/year

Capacity; 1 Million Samples

Communcation Method; USB.

Temperature

Accuracy; 0.25℃

Resolution; 0.005S℃

Drift; ＜0.1℃/year

Capacity; 1 Million Samples

Communcation Method; USB
